Local User Management#
In this document we cover managing people in the Gluu Server's LDAP Directory and graphical user interface "oxTrust".
Manage data in Gluu LDAP#
All the data generated by the Gluu Server is stored in the local LDAP server included in every deployment. This includes OpenID Connect client data, session data, tokens, user data, and more.
For Gluu OpenDJ, it will look like this:
bindDN: cn=directory manager bindPassword: foobar servers: localhost:1636
This may look slightly different if using other LDAP servers.
Establish a tunnel from your computer to the target Gluu Server's LDAP. Tunneling is required because Gluu Server's LDAP port, 1636, is not exposed to the internet.
In the below example we are showing how to connect and use Gluu Server's internal LDAP server with any LDAP browser.
- If ssh is not installed, run
sudo apt updateand
sudo apt install openssh-server, check the ssh status using
sudo service ssh status
- Allow root login by editing /etc/ssh/sshd_config - change
PermitRootLoginto yes, and run
sudo systemctl reload ssh
- Login as root using
sudo su -and set the password for root using 'passwd'
- Create tunnel:
ssh -fNL 5901:localhost:1636 root@[ip_of_Gluu_server]
- Open LDAP browser

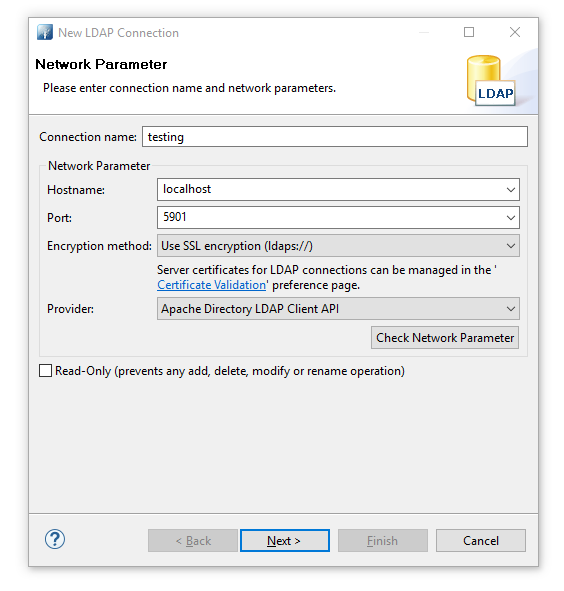

- Create new connection

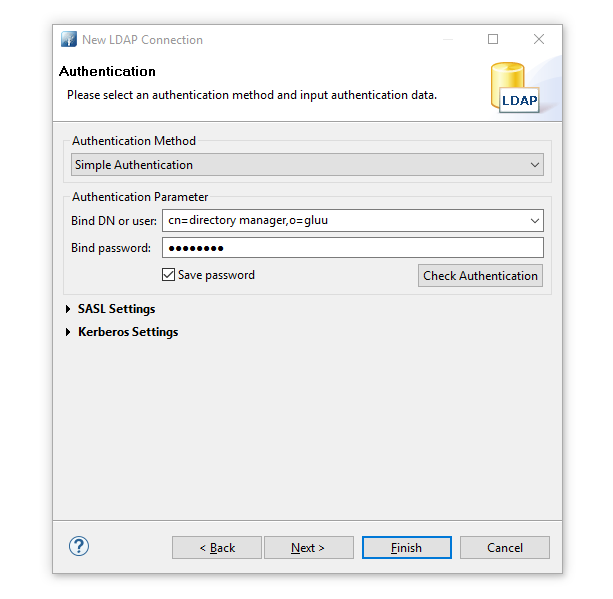

- Perform authentication. 'Password' is the the password of 'admin' user.

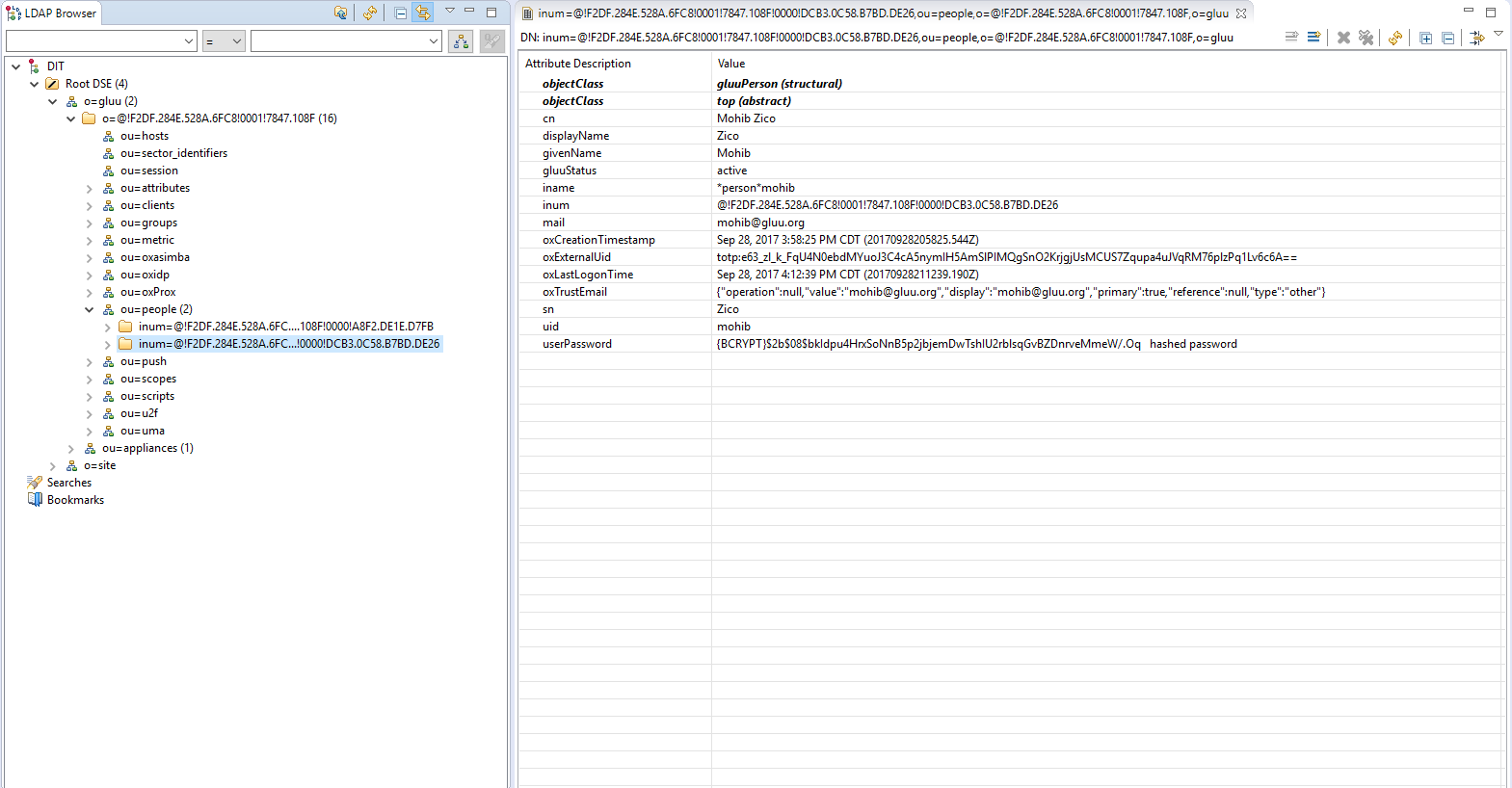

- Browse ldap and go to 'ou=people'.
Managing data associated with people can be performed in both oxTrust, the admin GUI, as well as LDAP. To manage people in oxTrust, navigate to

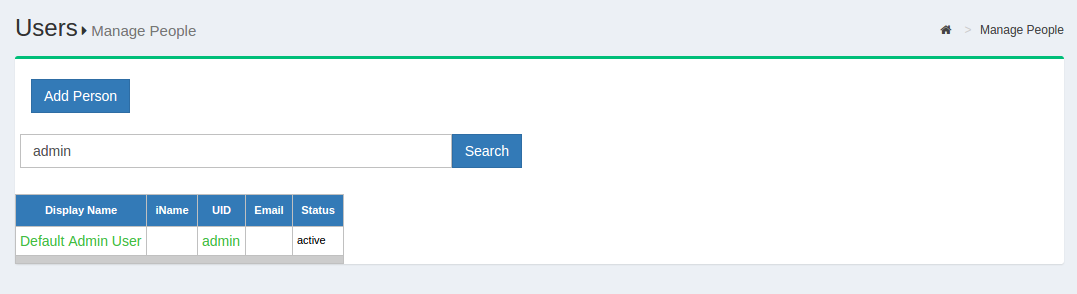

From this interface you can add and search users. Because the user database can potentially be very large, a value with at least two characters is required in the search field. In other words, you can not click search with a blank entry to populate all users. If you need to see all users, this would be best performed manually within the Gluu LDAP server. Upon performing a user search in oxTrust a list will be populated with all users that match the search.

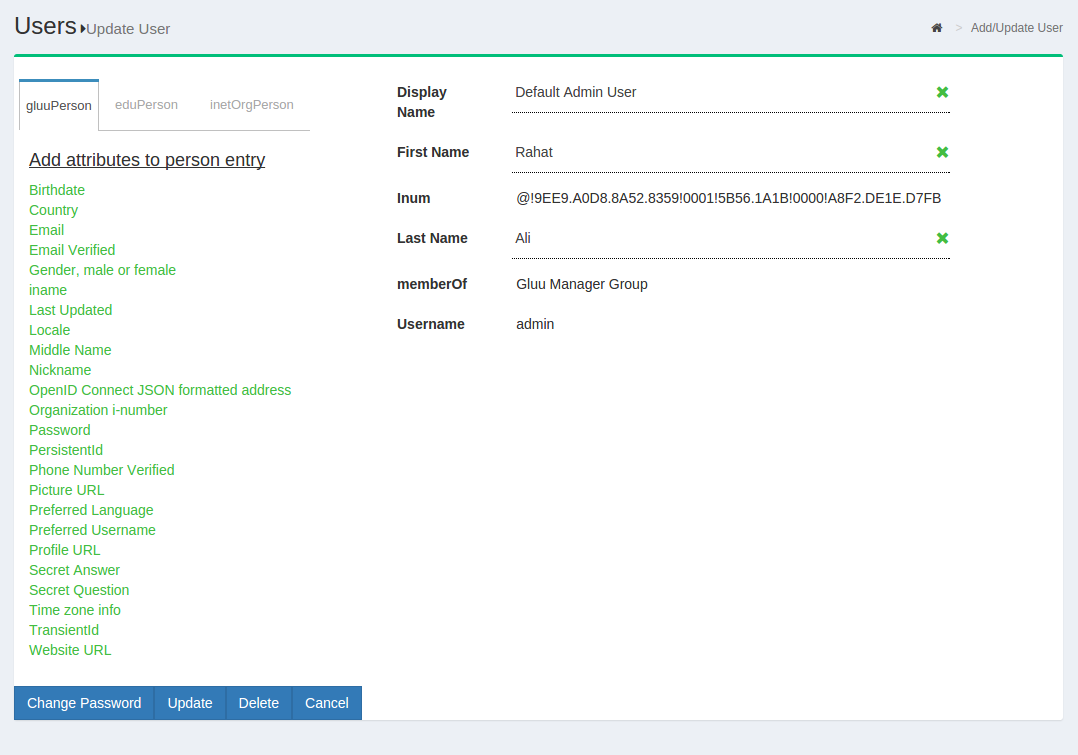

To edit a user, simply click on any of the hyperlinks associated with that user and you will be taken to a user management interface where you can modify specific attributes relating to that user.
Managing associated Pairwise IDs#

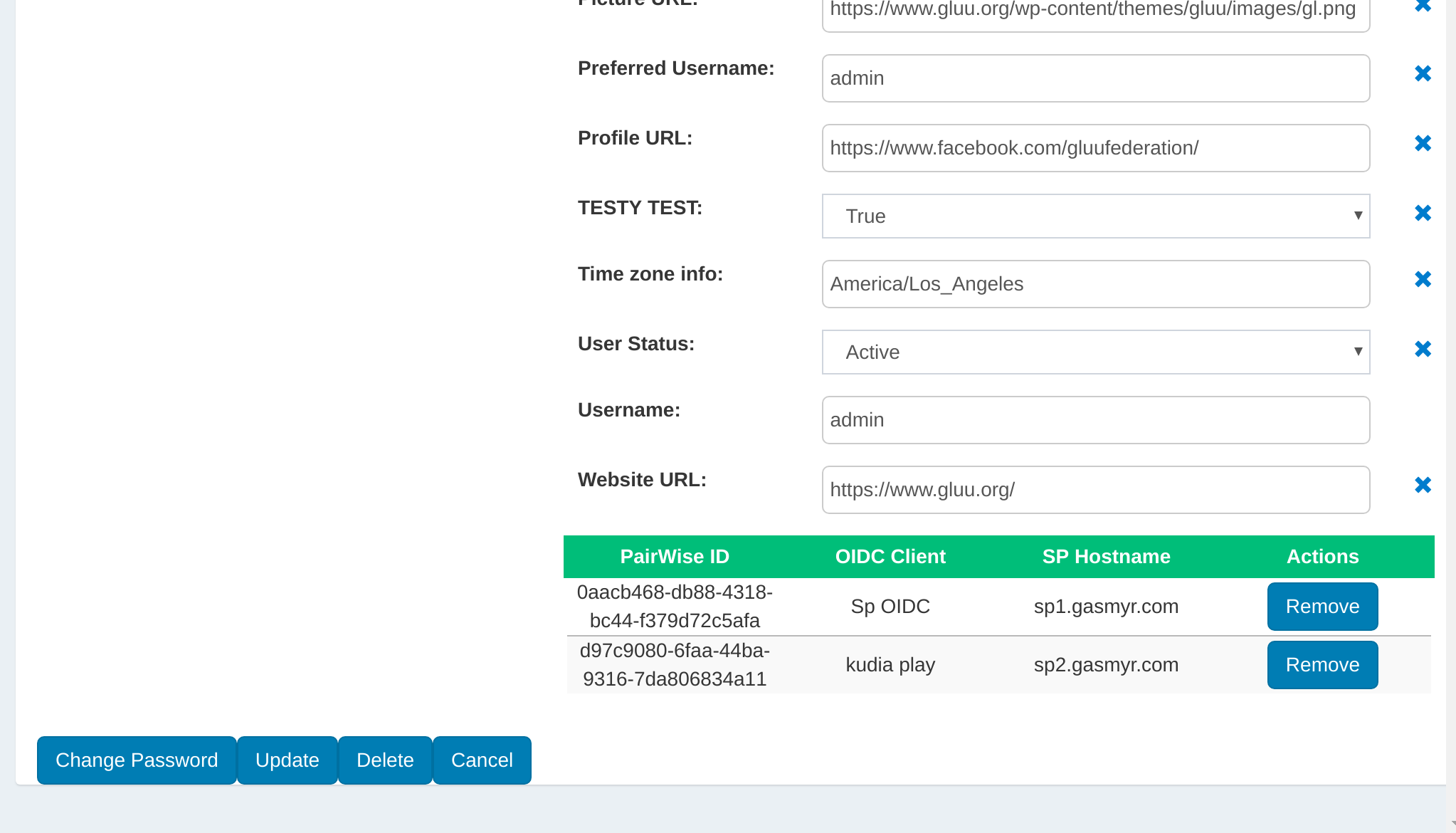

If the user has any associated Pairwise IDs, they will be displayed in a table on the bottom of the page. If an associated Pairwise ID needs to be removed, just click the
Managing associated 2FA devices#

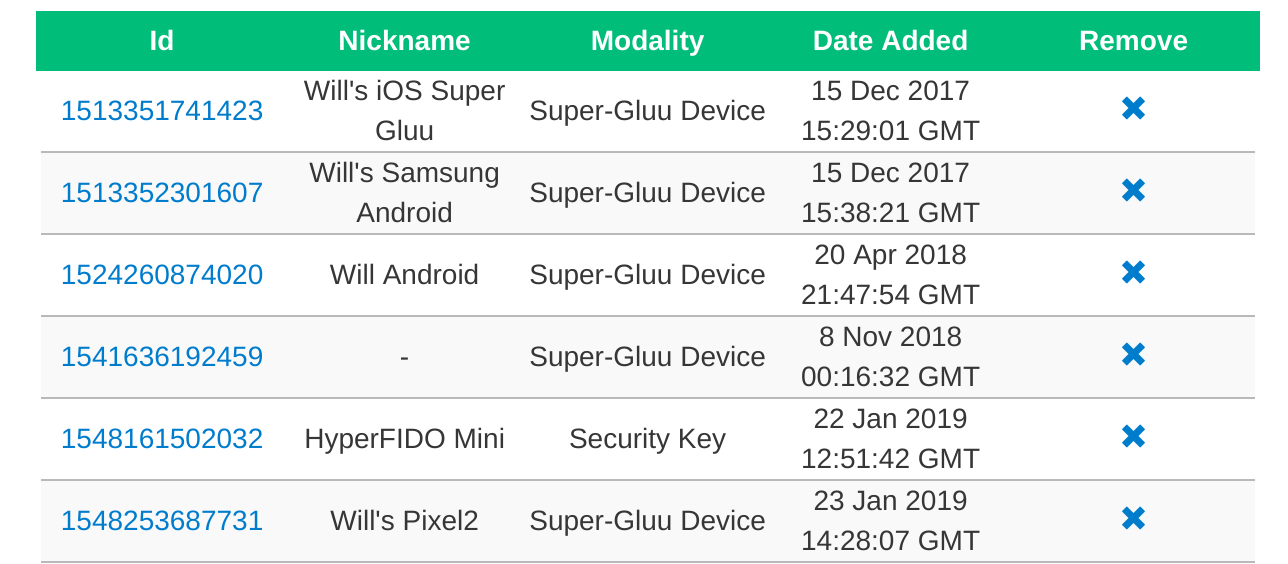

Likewise, if the user has any associated 2FA devices, they will be displayed in their own table at the bottom of the page. If an associated 2FA device needs to be removed, just click the
Managing associated authorizations#
If the user has previously granted authorization to release their data to specific applications, this can be managed in LDAP. There is a branch called
There can be several
oxId= ... entries underneath. Every entry has the
oxAuthClientId attribute, which is the inum of the OpenID client for which the user has authorized consent.
To remove consent for a user/client pair, manually remove the corresponding
To also remove the refresh tokens, check the clients branch
oxAuthGrantId=... branch, there will be subentries for
uniqueIdentifier=.... Those have the following attributes which map client, user and type of token issued:
oxAuthTokenType. Delete the
uniqueIdentifier=... entries as needed. oxAuth will also clear those automatically as per the
Manage Groups in oxTrust#

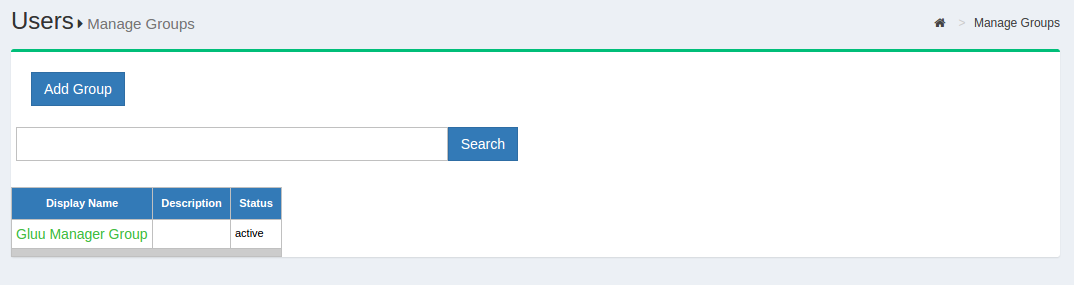

Out of the box, the Gluu Server includes one group: the Gluu Manager Group (
gluuManager). Groups can be added and populated as needed. By using the
Manage Groups feature, the Gluu Server Administrator can add, delete or modify any group or user within a group. The list of available groups can be viewed by hitting the
Search button with a blank search box.

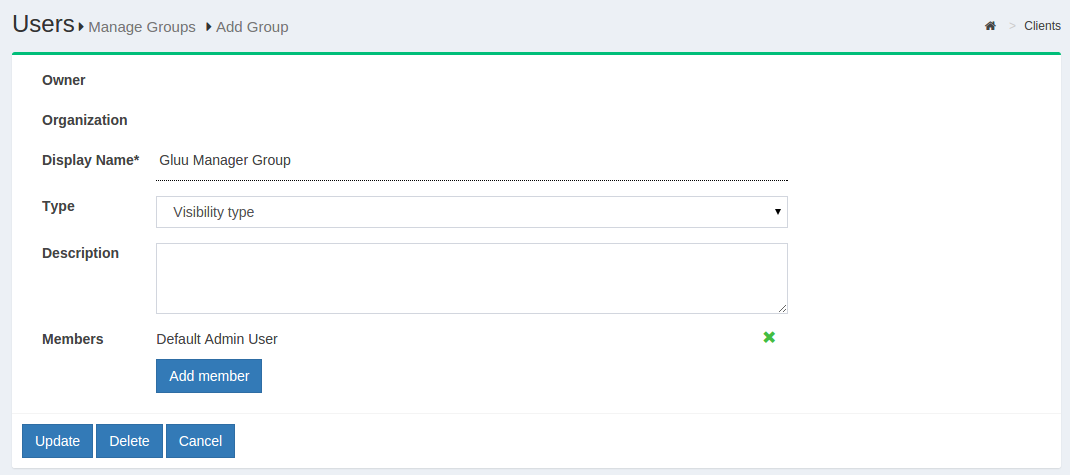

The Gluu Server Administrator can modify information such as Display Name, Group Owner, Visibility type etc. The Server Administrator can also add or delete users within existing groups. The group information is represented as shown below.

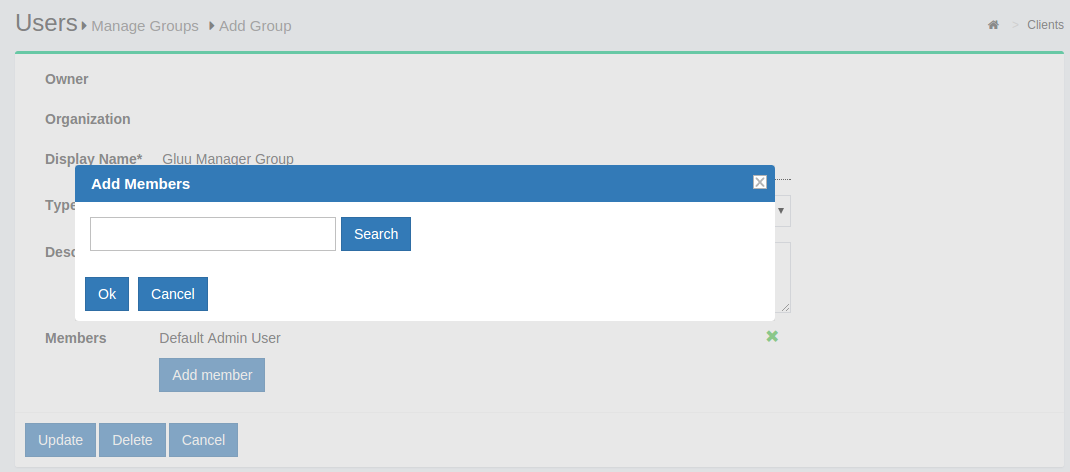

If any member of the Organization is required to be added in any specific group, this can be achieved be clicking on the Add Member button. The flow is Add Member --> Search the name/email of the user --> Select the user --> Click OK --> Update.
Import People in oxTrust#

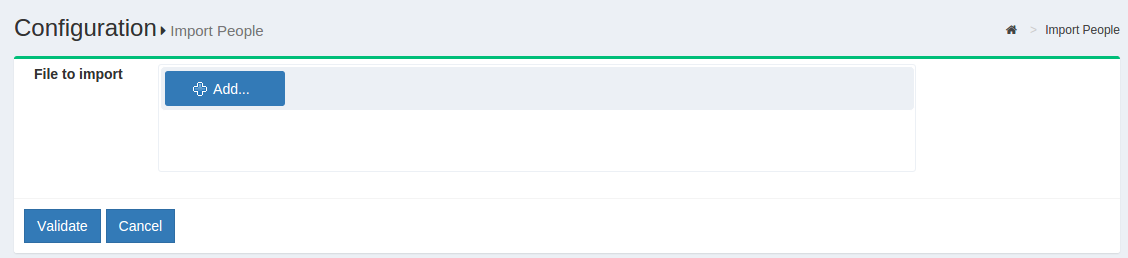

Users can be imported from an excel file by navigating to
Addbutton to select the file for import. Supported file formats are
If one field contains multiple values, provide them in the same cell separated by semicolons, as shown in column H in the following example:

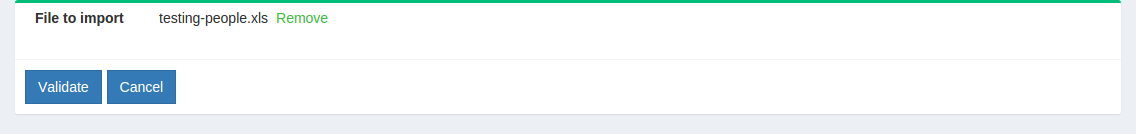

Validatebutton to validate the user list.
Importto complete the import of users.
The excel file can contain the following default fields (with spelling matching exactly as below):
First Name (required)
Last Name (required)
User Status is not included, the user(s) will be set to Inactive.
Additional fields can be defined for import by navigating to
Organization Configuration >
JSON Configuration and selecting the tab for
oxTrust Import Configuration. Read the docs.
