Build ThousandEyes Single Sign On with Gluu Server through SAML protocol#

ThousandEyes configuration#

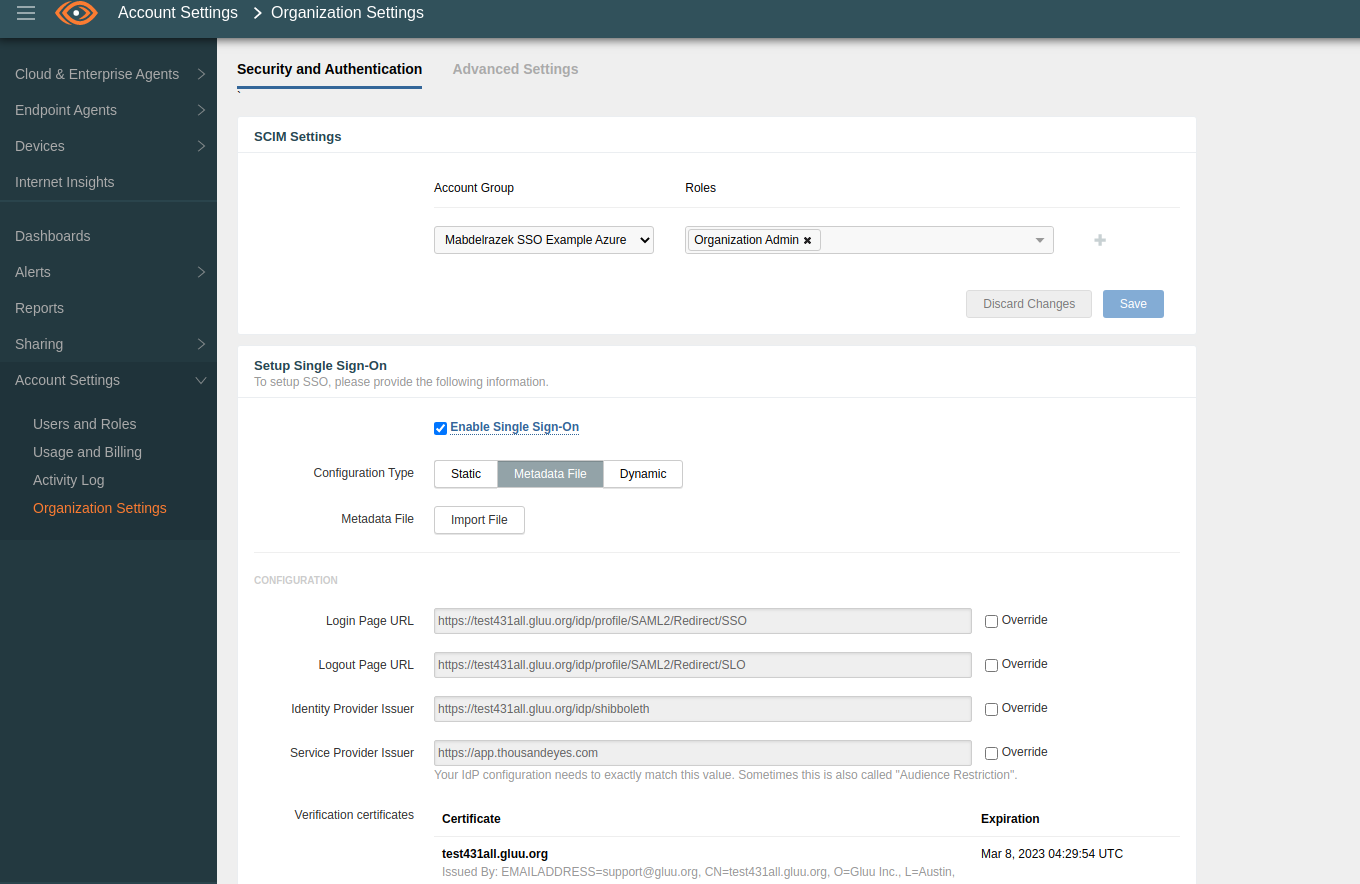

As administrative user, log into ThousandEyes control panel.

  • Account Settings > Organization Settings > Setup Single Sign-On
  • Grab Gluu Server's metadata from https://GluuServer.gluu.org/idp/shibboleth location and import that in "Metadata File"
  • Configuration:
  • Login Page URL: https://GluuServer.gluu.org/idp/profile/SAML2/Redirect/SSO
  • Logout Page URL: https://GluuServer.gluu.org/idp/profile/SAML2/Redirect/SLO
  • Identity Provider Issuer: https://test431all.gluu.org/idp/shibboleth
  • Service Provider Issuer: https://app.thousandeyes.com
  • Vetification certificates: automatically collected from IDP metadata...


Gluu Server configuration#

  • Grab ThousandEyes metadata from https://app.thousandeyes.com/saml-metadata and modify like below.
  • Remove unspecified type nameID section ( <md:NameIDFormat>urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified</md:NameIDFormat> )
  • Save it

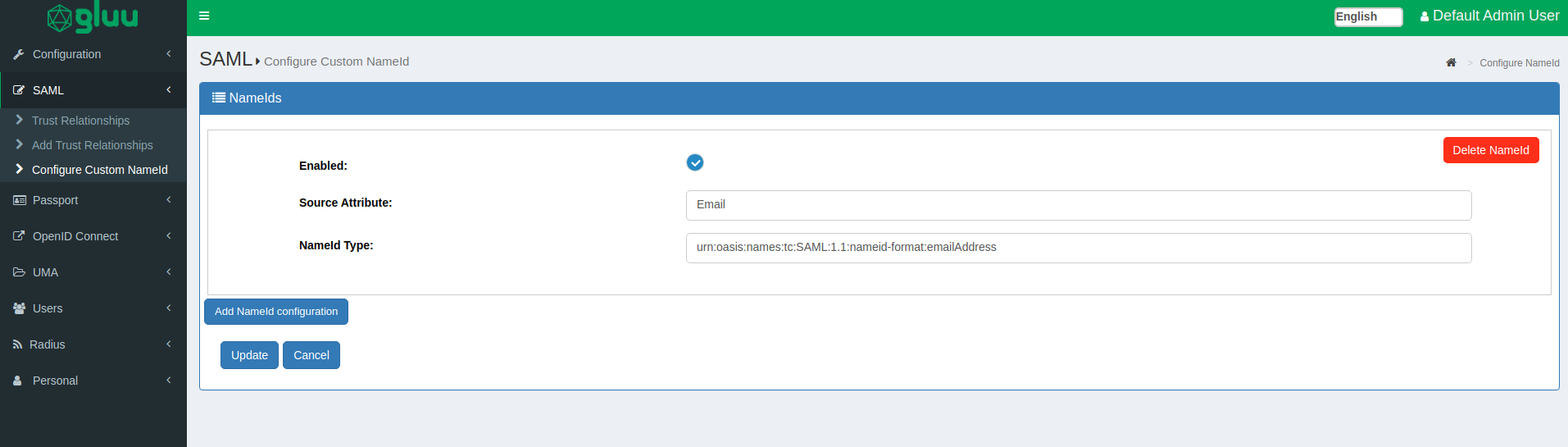

  • Configure NameID based on EmailAddress.

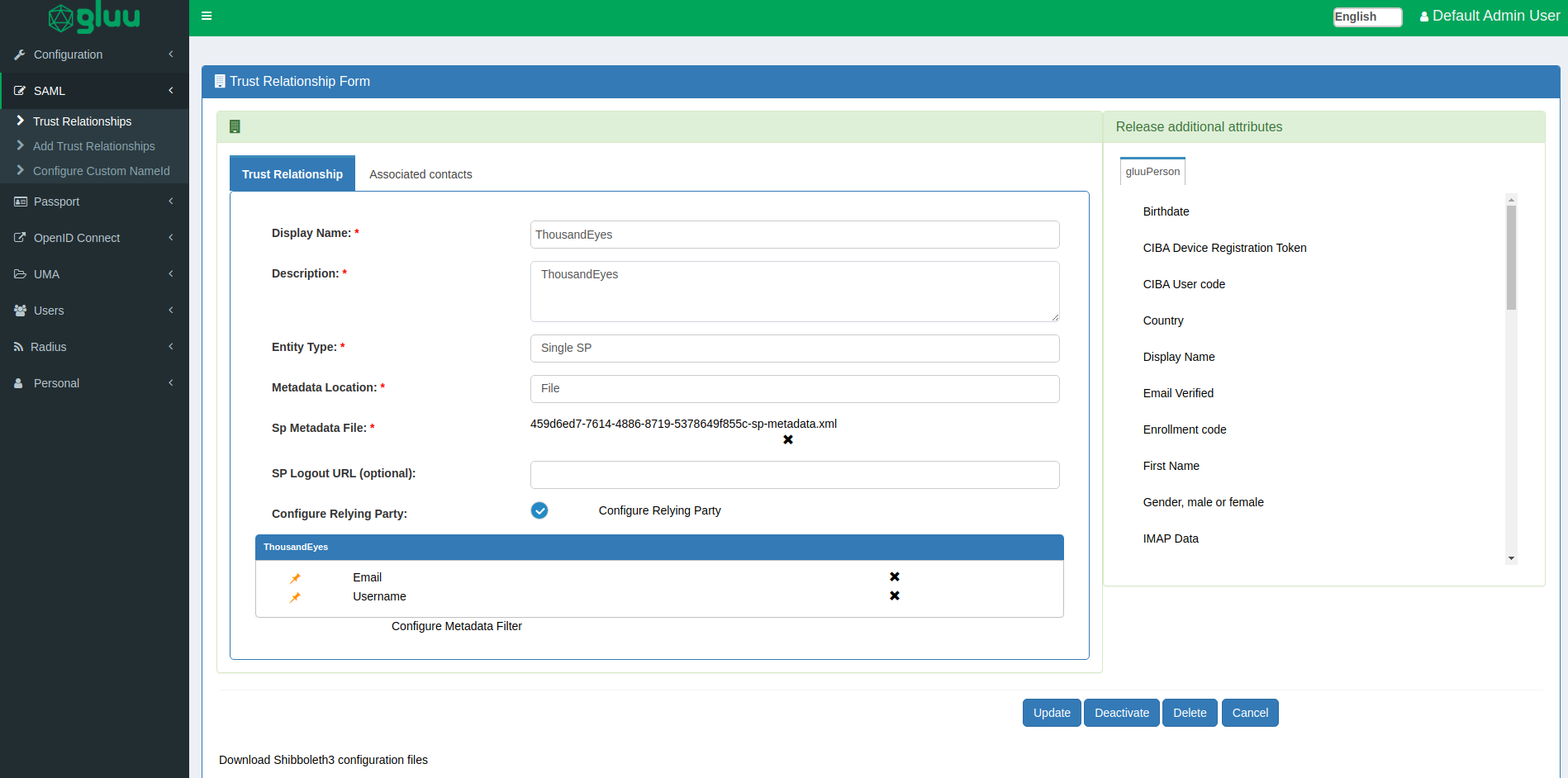

  • Configure Trust Relationship by using modified SP metadata.
  • Relying Party configuration:

    • "SAML2SSO" profile:
      • assertionLifetime: default
      • signResponses: conditional
      • signAssertions: never
      • signRequests: conditional
      • encryptAssertions: never
      • encryptNameIds: never
      • Default Auth Methods: none
      • includeAttributestatement: default
      • Support Unspecified NameidFormat: default
  • image

  • Create an user who has same email address as ThousandEyes portal has. As for example, test user 'mohib@gluu.org' is available in both ThousandEyes and Gluu Server in this case.

Test#

Use app.thousandeyes.com/login/sso to initiate SSO. A successful SSO would look like below:

  • Screencast: https://youtu.be/YrAjVN0hxAs
  • SAML assertion:
     <?xml version="1.0" encoding="UTF-8"?><saml2p:Response xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol" Destination="https://app.thousandeyes.com/login/sso/acs" ID="_57e46037dce5569adeed053c32a56cc5" InResponseTo="_df3efdd0-cac3-4c46-9e7d-f95462ed9df0" IssueInstant="2022-03-08T16:49:25.367Z" Version="2.0" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
         <saml2:Issuer xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">https://test431all.gluu.org/idp/shibboleth</saml2:Issuer>
         <ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
             <ds:SignedInfo>
                 <ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
                 <ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/>
                 <ds:Reference URI="#_57e46037dce5569adeed053c32a56cc5">
                     <ds:Transforms>
                         <ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
                         <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#">
                             <ec:InclusiveNamespaces xmlns:ec="http://www.w3.org/2001/10/xml-exc-c14n#" PrefixList="xsd"/>
                         </ds:Transform>
                     </ds:Transforms>
                     <ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/>
                     <ds:DigestValue>cjk9qQI8TXE2AU76TF7R1xk7dgIiLzjUY82hox/osTA=</ds:DigestValue>
                 </ds:Reference>
             </ds:SignedInfo>
             <ds:SignatureValue>qbXbimhid6uaOvoq5lPOSIjKVKO7/wwYPbumeqwlHPWorEgeACMoPjqL9REp4fP+c9hTA1B3/UAk2Rna8/eU8NOe9soCO/5zIrilLcduXlgXnDMNJXHr7Jo/2S+X3GmuPe4WFQ2QrDH5L2gXN2qrUt3+5qsdeyRgvWEYKOmrmZ9egrMWV+pJMPenDRdv7MVR6dVIC/yo7/xKvzlA7kyfJHdVNmuHYGzrCClUMXmippywnHaOBNpBHg1I5QEqo9eymhmaTl2Lk6DUV1J5PRyzkQydx8Vniju2Sj9FFkQ7MxYvS0Qri753hyXmz67OryQfchMPS+TbFyVpiyUcT+Hf3A==</ds:SignatureValue>
             <ds:KeyInfo>
                 <ds:X509Data>
                     <ds:X509Certificate>MIIDgzCCAmsCFHb8W9yVnE1wcfEYnxIHNBXqvZXfMA0GCSqGSIb3DQEBCwUAMH4xCzAJBgNVBAYT
     AlVTMQswCQYDVQQIDAJUWDEPMA0GA1UEBwwGQXVzdGluMRIwEAYDVQQKDAlHbHV1IEluYy4xHDAa
     BgNVBAMME3Rlc3Q0MzFhbGwuZ2x1dS5vcmcxHzAdBgkqhkiG9w0BCQEWEHN1cHBvcnRAZ2x1dS5v
     cmcwHhcNMjIwMzA4MDQyOTU0WhcNMjMwMzA4MDQyOTU0WjB+MQswCQYDVQQGEwJVUzELMAkGA1UE
     CAwCVFgxDzANBgNVBAcMBkF1c3RpbjESMBAGA1UECgwJR2x1dSBJbmMuMRwwGgYDVQQDDBN0ZXN0
     NDMxYWxsLmdsdXUub3JnMR8wHQYJKoZIhvcNAQkBFhBzdXBwb3J0QGdsdXUub3JnMIIBIjANBgkq
     hkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAq4qA/QLDcR4EUgp/ssOF5B20loJAYLJ7LK8uu5FaGZY8
     9rYE88sCg060rIXQ1U91ZBveVXhaKEI+wwMaEYM2NOcRBbWpLzX1HvgfEiQAJryEtoBSz1iYpVOt
     bqZYeVxSiKAegKir3MpxIVVzpCpXc0FjUtPkawhlr/HgZ9ft8GkIrdJoKEapwQYMkH0d3chUd/Jk
     YqpIr8cK0zyUUD5lnUMJty/CP6gREalIoWZFvolRIXa5WHHxqWDN46xCKuirZgdBmsLT0fHrv6Vm
     2sNS20X84QoZa2JRyDET4ohJLT3VxU5iFd7lDQI4GBWxpAJwk5qTM106Z7x6dlf/SpNUvQIDAQAB
     MA0GCSqGSIb3DQEBCwUAA4IBAQBfcxB75sVn14DObaHeNBJuTePVpLX0uWoH6S6a1wzZTylYYZXX
     MewBoHTIfaNE/8xXg467+wfICbBl7TaBnZxfhLt5dP6R8SuYIvstLY02PY5Xc6Rq0XIpl8nu6Str
     5k96VxUlrEnNrvGJoHzJ+io5uEpJTb5qyjAW5/fe2suiVh7rzxNR5MVRYDwlq1RA7AQNyou1FDdG
     Vi6tx92OWXhotWY8Q14j3LdJcLiUZDX3nMZGaRzB+Bd+9Y+p8Z5zxz7cQn1HyD1wxC0yLWkl+gW0
     CzyOc234DU6oFDn8Qr6O6f8/Wo02v8rqc8RdCzRgyTno4MDdKhgjk3svk/Foei8m</ds:X509Certificate>
                 </ds:X509Data>
             </ds:KeyInfo>
         </ds:Signature>
         <saml2p:Status>
             <saml2p:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success"/>
         </saml2p:Status>
         <saml2:Assertion xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion" ID="_7d8f36c36377b1a5b003ef841ca2387b" IssueInstant="2022-03-08T16:49:25.367Z" Version="2.0" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
             <saml2:Issuer>https://test431all.gluu.org/idp/shibboleth</saml2:Issuer>
             <ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
                 <ds:SignedInfo>
                     <ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
                     <ds:SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256"/>
                     <ds:Reference URI="#_7d8f36c36377b1a5b003ef841ca2387b">
                         <ds:Transforms>
                             <ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
                             <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#">
                                 <ec:InclusiveNamespaces xmlns:ec="http://www.w3.org/2001/10/xml-exc-c14n#" PrefixList="xsd"/>
                             </ds:Transform>
                         </ds:Transforms>
                         <ds:DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256"/>
                         <ds:DigestValue>9x9rsyeERjVLu2SFkAAyXtS0WQVjPr0BsWKMFw53Wow=</ds:DigestValue>
                     </ds:Reference>
                 </ds:SignedInfo>
                 <ds:SignatureValue>dHXFFJ8vO1hjsnHnqEhwPNpu3Z5QmuSEoIkyLCjeBBMRoKJqSFKaWDdAGvbL0uQXYfaL4OeHg8GWbvRfclIT2dOYZFpEI6u7IiR09gqo4eSuzPwOYNwff+R5vgWWtrMwN1CX+1Ke83xfcU+Sor2U5biBuRu1XQxE+maN4SFlPWpFSC3pXjFkemiYHz/qGV4AcIcM1OnVG1PqKvFBYLlbc2gvNMLVdXylL2oGMKk90KQ90YtAI2Ko3EcU5gpQPSDeFns0n+8YS5SwTtDjwrvRnkuHMYaBfFwY+ISKyTutZE+sobTH/r1kyFnkMsPL6sRatxEw2Ggqg2qs+byxDpw1VA==</ds:SignatureValue>
                 <ds:KeyInfo>
                     <ds:X509Data>
                         <ds:X509Certificate>MIIDgzCCAmsCFHb8W9yVnE1wcfEYnxIHNBXqvZXfMA0GCSqGSIb3DQEBCwUAMH4xCzAJBgNVBAYT
     AlVTMQswCQYDVQQIDAJUWDEPMA0GA1UEBwwGQXVzdGluMRIwEAYDVQQKDAlHbHV1IEluYy4xHDAa
     BgNVBAMME3Rlc3Q0MzFhbGwuZ2x1dS5vcmcxHzAdBgkqhkiG9w0BCQEWEHN1cHBvcnRAZ2x1dS5v
     cmcwHhcNMjIwMzA4MDQyOTU0WhcNMjMwMzA4MDQyOTU0WjB+MQswCQYDVQQGEwJVUzELMAkGA1UE
     CAwCVFgxDzANBgNVBAcMBkF1c3RpbjESMBAGA1UECgwJR2x1dSBJbmMuMRwwGgYDVQQDDBN0ZXN0
     NDMxYWxsLmdsdXUub3JnMR8wHQYJKoZIhvcNAQkBFhBzdXBwb3J0QGdsdXUub3JnMIIBIjANBgkq
     hkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAq4qA/QLDcR4EUgp/ssOF5B20loJAYLJ7LK8uu5FaGZY8
     9rYE88sCg060rIXQ1U91ZBveVXhaKEI+wwMaEYM2NOcRBbWpLzX1HvgfEiQAJryEtoBSz1iYpVOt
     bqZYeVxSiKAegKir3MpxIVVzpCpXc0FjUtPkawhlr/HgZ9ft8GkIrdJoKEapwQYMkH0d3chUd/Jk
     YqpIr8cK0zyUUD5lnUMJty/CP6gREalIoWZFvolRIXa5WHHxqWDN46xCKuirZgdBmsLT0fHrv6Vm
     2sNS20X84QoZa2JRyDET4ohJLT3VxU5iFd7lDQI4GBWxpAJwk5qTM106Z7x6dlf/SpNUvQIDAQAB
     MA0GCSqGSIb3DQEBCwUAA4IBAQBfcxB75sVn14DObaHeNBJuTePVpLX0uWoH6S6a1wzZTylYYZXX
     MewBoHTIfaNE/8xXg467+wfICbBl7TaBnZxfhLt5dP6R8SuYIvstLY02PY5Xc6Rq0XIpl8nu6Str
     5k96VxUlrEnNrvGJoHzJ+io5uEpJTb5qyjAW5/fe2suiVh7rzxNR5MVRYDwlq1RA7AQNyou1FDdG
     Vi6tx92OWXhotWY8Q14j3LdJcLiUZDX3nMZGaRzB+Bd+9Y+p8Z5zxz7cQn1HyD1wxC0yLWkl+gW0
     CzyOc234DU6oFDn8Qr6O6f8/Wo02v8rqc8RdCzRgyTno4MDdKhgjk3svk/Foei8m</ds:X509Certificate>
                     </ds:X509Data>
                 </ds:KeyInfo>
             </ds:Signature>
             <saml2:Subject>
                 <saml2:NameID Format="urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress" xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">mohib@gluu.org</saml2:NameID>
                 <saml2:SubjectConfirmation Method="urn:oasis:names:tc:SAML:2.0:cm:bearer">
                     <saml2:SubjectConfirmationData Address="118.179.84.52" InResponseTo="_df3efdd0-cac3-4c46-9e7d-f95462ed9df0" NotOnOrAfter="2022-03-08T16:54:25.435Z" Recipient="https://app.thousandeyes.com/login/sso/acs"/>
                 </saml2:SubjectConfirmation>
             </saml2:Subject>
             <saml2:Conditions NotBefore="2022-03-08T16:49:25.367Z" NotOnOrAfter="2022-03-08T16:54:25.367Z">
                 <saml2:AudienceRestriction>
                     <saml2:Audience>https://app.thousandeyes.com</saml2:Audience>
                 </saml2:AudienceRestriction>
             </saml2:Conditions>
             <saml2:AuthnStatement AuthnInstant="2022-03-08T16:49:25.298Z" SessionIndex="_e4e94633d2a9159c4e085d666b2b0506">
                 <saml2:SubjectLocality Address="118.179.84.52"/>
                 <saml2:AuthnContext>
                     <saml2:AuthnContextClassRef>urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport</saml2:AuthnContextClassRef>
                 </saml2:AuthnContext>
             </saml2:AuthnStatement>
             <saml2:AttributeStatement>
                 <saml2:Attribute FriendlyName="mail" Name="urn:oid:0.9.2342.19200300.100.1.3" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:uri">
                     <saml2:AttributeValue xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xsd:string">mohib@gluu.org</saml2:AttributeValue>
                 </saml2:Attribute>
                 <saml2:Attribute FriendlyName="uid" Name="urn:oid:0.9.2342.19200300.100.1.1" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:uri">
                     <saml2:AttributeValue xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xsd:string">mohib</saml2:AttributeValue>
                 </saml2:Attribute>
             </saml2:AttributeStatement>
         </saml2:Assertion>
     </saml2p:Response>

     2022-03-08 16:49:25,512 - 118.179.84.52 - DEBUG [net.shibboleth.idp.profile.impl.RecordResponseComplete:89] - Profile Action RecordResponseComplete: Record response complete
     2022-03-08 16:49:25,513 - 118.179.84.52 - INFO [Shibboleth-Audit.SSO:283] - 118.179.84.52|2022-03-08T16:49:13.638592Z|2022-03-08T16:49:25.513084Z|mohib|https://app.thousandeyes.com|_7d8f36c36377b1a5b003ef841ca2387b|password|2022-03-08T16:49:25.298206Z|mail,uid|mohib@gluu.org|emailAddress|false|false||Redirect|POST||Success||a3d650ed9bb68585b6a0eef595cfa46f9cf298df1379440409fa27c7ea4e7827|Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/98.0.4758.80 Safari/537.36
