Certificates#

Certificates in Chroot#

Gluu Server components have cryptographic keys and X.509 certificates that are stored inside thechroot. Details for certificates associated with each component are provided below. The following certificates are available in the /etc/certs folder.

IDP Shibboleth APACHE OPENDJ
idp-encryption.crt shibIDP.crt httpd.crt opendj.crt
idp-encryption.csr shibIDP.csr https.csr opendj.pksc12
idp-encryption.key shibIDP.jks httpd.key
idp-encryption.key.orig shibIDP.key httpd.key.orig
idp-signing.crt shibIDP.key.orig
idp-signing.csr shibIDP.pkcs12
idp-signing.key
idp-signing.key.orig

The certificates for Passport authentication are passport-rp.jks, passport-rp.pem, passport-rs.jks.

The SCIM certificate is named scim-rs.jks and the OTP certificate is named otp_configuration.json.

Custom Script JSON Files#

Additionally the following json files are available which are used in different custom scripts for multi-factor authentication.

  • cert_creds.json
  • duo_creds.json
  • gplus_client_secrets.json
  • otp_configuration.json
  • oxauth-keys.json
  • super_gluu_creds.json
  • vericloud_gluu_creds.json

Generating Cryptographic Keys#

The Gluu Server is compatible with the Java KeyGenerator to create new cryptographic keys if needed.

To get KeyGenerator, run the following command inside the chroot:

wget https://ox.gluu.org/maven/org.gluu/oxauth-client/4.2/oxauth-client-4.2-jar-with-dependencies.jar -O oxauth-client.jar

Then, run KeyGenerator with the following command:

java -jar oxauth-client.jar <arguments>

The Gluu implementation of KeyGenerator accepts the following arguments:

Argument Description
-at oxEleven Access Token
-dnname DN of certificate issuer
-enc_keys Encryption keys to generate (For example: RSA_OAEP, RSA1_5)
-expiration Expiration in days
-expiration_hours Expiration in hours
-h Show help
-keypasswd Key Store password
-keystore Key Store file (such as /etc/certs/api-rs.jks)
-ox11 oxEleven Generate Key Endpoint.
-sig_keys Signature keys to generate. (For example: RS256 RS384 RS512 ES256 ES384 ES512 PS256 PS384 PS512)

Certificates in oxTrust#

Certificates commonly used for SSO typically have a short expiration date, and can now be easily viewed and downloaded in oxTrust. Navigate to Configuration > Certificates to access these certificates.

The following are available:

  • OpenDJ SSL
  • httpd SSL
  • IDP Signing
  • IDP Encryption

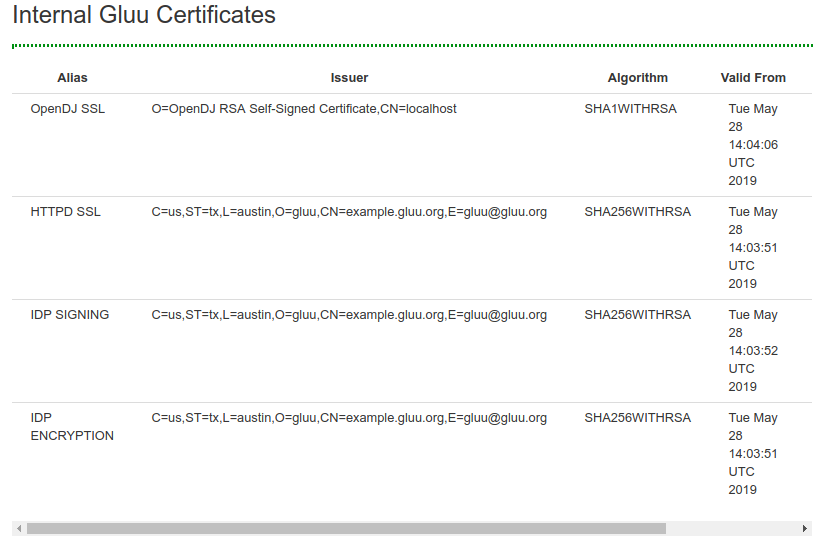

Example Certs in oxTrust

Updating Apache Certificate#

The certificates must be manually updated from the /etc/certs/ folder.

There are many tools that can be used to update and renew certificates. By default Gluu uses OpenSSL. If you have questions about using other tools, like Let'sEncrypt, check the Gluu support portal for existing threads. If there is no existing information, sign up and open a ticket.

Warning

The private key cannot be password protected, and the public key must be base64 X.509.

Note

Please backup your full /etc/certs directory and cacerts file under /opt/jdkx.y.z/jre/lib/security/ folder before updating certificates.

Please follow these steps shown below to update the Apache SSL cert:

  • Save the latest SSL httpd key and certificate in the /etc/certs folder
  • Rename them to httpd.key and httpd.crt respectively
  • Import 'httpd.der' into the Java Keystore / Convertion to DER, command:
    openssl x509 -outform der -in httpd.crt -out httpd.der
    • Delete the existing certificate to avoid ambiguity due to presence of 2 different certificates for the same entity after importing the new one: /opt/jdkx.x.x.x/jre/bin/keytool -delete -alias <hostname_of_your_Gluu_Server>_httpd -keystore /opt/jdkx.x.x.x/jre/lib/security/cacerts -storepass changeit
    • Import certificate into the Java Keystore(cacerts): /opt/jdkx.x.x.x/jre/bin/keytool -importcert -file httpd.der -keystore /opt/jdkx.x.x.x/jre/lib/security/cacerts -alias <hostname_of_your_Gluu_Server>_httpd -storepass changeit
  • Restart opendj, apache2/httpd, oxauth and identity services.

Install Intermediate Certificates#

Please follow the steps below to install intermediate certificates:

  1. Log in to the Gluu Server container.
  2. Keep your intermediate certificate in the file /etc/certs/.
  3. Modify /etc/httpd/conf.d/https_gluu.conf, and add
    SSLCertificateChainFile /etc/certs/name_of_your_interm_root_cert.crt.
  4. Restart the httpd service.

Rotating Certificates and Keys in Kubernetes setup#

Note

gluu-config-cm in all examples refer to gluus installation configuration parameters. This name is correct in Kustomization installation, however in Helm the name is in the format of <helms release name>-config-cm and must be changed.

Associated certificates and keys
/etc/certs/gluu_https.crt
/etc/certs/gluu_https.key
  1. Create a file named web-key-rotation.yaml with the following contents :

    # License terms and conditions for Gluu Cloud Native Edition:
    # https://www.apache.org/licenses/LICENSE-2.0
    apiVersion: batch/v1
    kind: Job
    metadata:
      name: web-key-rotation
    spec:
      template:
        spec:
          restartPolicy: Never
          containers:
            - name: web-key-rotation
              image: gluufederation/certmanager:4.2.0_01
              envFrom:
              - configMapRef:
                  name: gluu-config-cm # This may be differnet in Helm
              args: ["patch", "web"]

  2. Apply job

        kubectl apply -f web-key-rotation.yaml -n <gluu-namespace>


Note

This will load gluu_https.crt and gluu_https.key from /etc/certs.

  1. Create a secret with gluu_https.crt and gluu_https.key. Note that this may already exist in your deployment.

        kubectl create secret generic web-cert-key --from-file=gluu_https.crt --from-file=gluu_https.key -n <gluu-namespace>`

  2. Create a file named load-web-key-rotation.yaml with the following contents :

    # License terms and conditions for Gluu Cloud Native Edition:
    # https://www.apache.org/licenses/LICENSE-2.0
    apiVersion: batch/v1
    kind: Job
    metadata:
      name: load-web-key-rotation
    spec:
      template:
        spec:
          restartPolicy: Never
          volumes:
          - name: web-cert
            secret:
              secretName: web-cert-key
              items:
                - key: gluu_https.crt
                  path: gluu_https.crt
          - name: web-key
            secret:
              secretName: web-cert-key
              items:
                - key: gluu_https.key
                  path: gluu_https.key
          containers:
            - name: load-web-key-rotation
              image: gluufederation/certmanager:4.2.0_01
              envFrom:
              - configMapRef:
                  name: gluu-config-cm  #This may be differnet in Helm
              volumeMounts:
                - name: web-cert
                  mountPath: /etc/certs/gluu_https.crt
                  subPath: gluu_https.crt
                - name: web-key
                  mountPath: /etc/certs/gluu_https.key
                  subPath: gluu_https.key
              args: ["patch", "web", "--opts", "source:from-files"]

  3. Apply job

        kubectl apply -f load-web-key-rotation.yaml -n <gluu-namespace>


Warning

Key rotation cronJob is usually installed with Gluu. Please make sure before deploying kubectl get cronjobs -n <gluu-namespace>.

Associated certificates and keys
/etc/certs/oxauth-keys.json
/etc/certs/oxauth-keys.jks
  1. Create a file named oxauth-key-rotation.yaml with the following contents :

    # License terms and conditions for Gluu Cloud Native Edition:
    # https://www.apache.org/licenses/LICENSE-2.0
    kind: CronJob
    apiVersion: batch/v1beta1
    metadata:
      name: oxauth-key-rotation
    spec:
      schedule: "0 */48 * * *"
      concurrencyPolicy: Forbid
      jobTemplate:
        spec:
          template:
            spec:
              containers:
                - name: oxauth-key-rotation
                  image: gluufederation/certmanager:4.2.0_01
                  resources:
                    requests:
                      memory: "300Mi"
                      cpu: "300m"
                    limits:
                      memory: "300Mi"
                      cpu: "300m"
                  envFrom:
                    - configMapRef:
                        name: gluu-config-cm
                  args: ["patch", "oxauth", "--opts", "interval:48"]
              restartPolicy: Never

  2. Apply cron job

        kubectl apply -f oxauth-key-rotation.yaml -n <gluu-namespace>

Associated certificates and keys
/etc/certs/shibIDP.crt
/etc/certs/shibIDP.key
/etc/certs/shibIDP.jks
/etc/certs/sealer.jks
/etc/certs/sealer.kver
/etc/certs/idp-signing.crt
/etc/certs/idp-signing.key
//etc/certs/idp-encryption.crt
/etc/certs/idp-encryption.key
  1. Create a file named oxshibboleth-key-rotation.yaml with the following contents :

    # License terms and conditions for Gluu Cloud Native Edition:
    # https://www.apache.org/licenses/LICENSE-2.0
    apiVersion: batch/v1
    kind: Job
    metadata:
      name: oxshibboleth-key-rotation
    spec:
      template:
        spec:
          restartPolicy: Never
          containers:
            - name: oxshibboleth-key-rotation
              image: gluufederation/certmanager:4.2.0_01
              envFrom:
              - configMapRef:
                  name: gluu-config-cm
              args: ["patch", "oxshibboleth"]

  2. Apply job

        kubectl apply -f oxshibboleth-key-rotation.yaml -n <gluu-namespace>

Associated certificates and keys
/etc/certs/oxd_application.crt
/etc/certs/oxd_application.key
/etc/certs/oxd_application.keystore
/etc/certs/oxd_admin.crt
/etc/certs/oxd_admin.key
/etc/certs/oxd_admin.keystore

Note

Application common name must match oxd service name. kubectl get svc -n <gluu-namespace>. We assume it to be oxd-server below.

  1. Create a file named oxd-key-rotation.yaml with the following contents :

    # License terms and conditions for Gluu Cloud Native Edition:
    # https://www.apache.org/licenses/LICENSE-2.0
    apiVersion: batch/v1
    kind: Job
    metadata:
      name: oxd-key-rotation
    spec:
      template:
        spec:
          restartPolicy: Never
          containers:
            - name: oxd-key-rotation
              image: gluufederation/certmanager:4.2.0_01
              envFrom:
              - configMapRef:
                  name: gluu-config-cm
              # Change application-cn:oxd-server and admin-cn:oxd-server to match oxd service name
              args: ["patch", "oxd", "--opts", "application-cn:oxd-server", "--opts", "admin-cn:oxd-server"]

  2. Apply job

        kubectl apply -f oxd-key-rotation.yaml -n <gluu-namespace>


Note

Subject Alt Name must match opendj service.

Associated certificates and keys
/etc/certs/opendj.crt
/etc/certs/opendj.key
/etc/certs/opendj.pem
/etc/certs/opendj.pkcs12
  1. Create a file named ldap-key-rotation.yaml with the following contents :

    # License terms and conditions for Gluu Cloud Native Edition:
    # https://www.apache.org/licenses/LICENSE-2.0
    apiVersion: batch/v1
    kind: Job
    metadata:
      name: ldap-key-rotation
    spec:
      template:
        spec:
          restartPolicy: Never
          containers:
            - name: ldap-key-rotation
              image: gluufederation/certmanager:4.2.0_01
              envFrom:
              - configMapRef:
                  name: gluu-config-cm
              args: ["patch", "ldap", "--opts", "subj-alt-name:opendj"]

  2. Apply job

        kubectl apply -f ldap-key-rotation.yaml -n <gluu-namespace>

  3. Restart pods.

Associated certificates and keys
/etc/certs/passport-rs.jks
/etc/certs/passport-rs-keys.json
/etc/certs/passport-rp.jks
/etc/certs/passport-rp-keys.json
/etc/certs/passport-rp.pem
/etc/certs/passport-sp.key
/etc/certs/passport-sp.crt
  1. Create a file named passport-key-rotation.yaml with the following contents :

    # License terms and conditions for Gluu Cloud Native Edition:
    # https://www.apache.org/licenses/LICENSE-2.0
    apiVersion: batch/v1
    kind: Job
    metadata:
      name: passport-key-rotation
    spec:
      template:
        spec:
          restartPolicy: Never
          containers:
            - name: passport-key-rotation
              image: gluufederation/certmanager:4.2.0_01
              envFrom:
              - configMapRef:
                  name: gluu-config-cm
              args: ["patch", "passport"]

  2. Apply job

        kubectl apply -f passport-key-rotation.yaml -n <gluu-namespace>

Associated certificates and keys
/etc/certs/scim-rs.jks
/etc/certs/scim-rs-keys.json
/etc/certs/scim-rp.jks
/etc/certs/scim-rp-keys.json
  1. Create a file named scim-key-rotation.yaml with the following contents :

    # License terms and conditions for Gluu Cloud Native Edition:
    # https://www.apache.org/licenses/LICENSE-2.0
    apiVersion: batch/v1
    kind: Job
    metadata:
      name: scim-key-rotation
    spec:
      template:
        spec:
          restartPolicy: Never
          containers:
            - name: scim-key-rotation
              image: gluufederation/certmanager:4.2.0_01
              envFrom:
              - configMapRef:
                  name: gluu-config-cm
              args: ["patch", "scim"]

  2. Apply job

        kubectl apply -f scim-key-rotation.yaml -n <gluu-namespace>
